Application:

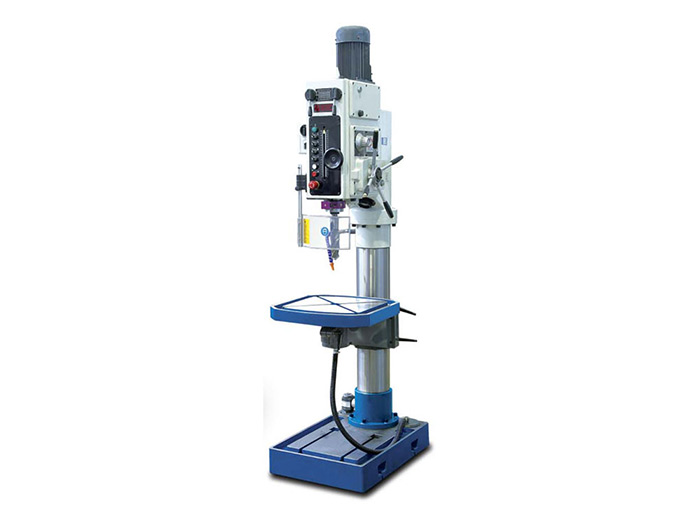

This machine is designed for drilling, counterboring ,reaming, tapping, spotfacing, etc, The maximum drilling capacity is 50mm on small or middle sized workpieces. It is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.

Standard accessories

·Work light
·Coolant system
·Fender device
·Tool box & tools 1 set



Special accessories

·Lifting worktable by motor(only for model Z5050)



Name

Z5050

Maximum Drilling Diameter

50mm

Taper Of Spindle Hole

MT4#

Distance From The Center Of Spindle To The Surface Of The Vertical Column

375mm

Maximum Travel Of Spindle

230mm

Range Of Spindle Speed

54~2090rpm

Maximum Distance From Spindle Nose To Base Plate Working Surface

1300mm

Maximum Distance From Spindle Nose To Working Table

800mm

Dimensions Of Working Table

600×600mm

Dimensions Of Base

860×600mm

Width Of T Slot

18mm

Distance Of T Slot Of Base

280mm

Range Of Feed

0.05,0.1,0.15,0.2,0.25,0.3

Power Of Main Motor

3.0/2.4kW

Power Of Coolant Pump

40W

Overall Dimension(L×W×H)

61×102×245cm

Packing Size(L×W×H)

258×75×114cm

Gross Weight/net Weight

920/820kg
