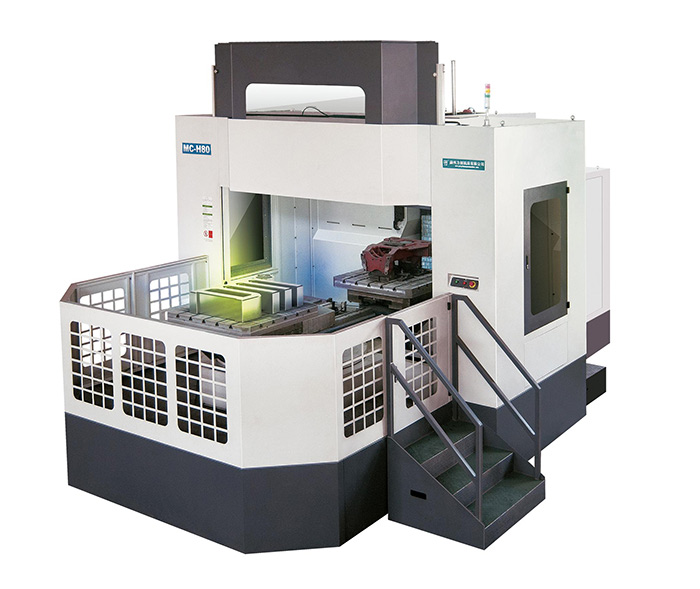

MC-H40 XMC-H50 MC-H63
MC-H80 MC-H125

features :
◆A prevalent inverted “T”, Shaped layout is in the base frame, which is high in rigidity of the integral structure and is not creative of any overturning during the full stroke
◆The base frame manufacture by five-sided machine high-precisely machining centre , finish most work in one chucking
◆A grouped 600 angular contact ball bearing 15 adopted in the lead screw , which 15 doubly supported and pre-tensioned ,50 as to increase the machining precision
◆High-frequency hardened slide rails or heavy- load high precision roller guideways , which have an excellent property of shock absorption and can bear heaVy Ioad cutting
◆Taiwan precision spindle , 6 , 000r / min and with air film protection device , so as to ensure to keep the spindle precision and service long life
◆CNC rotary table , Indexing table ,exchange table for optional

Specification

MODEL

MC-H80G(Liner way)

Worktable dimensions ( L×W )

800×800mm

Number of worktables

1

Worktable indexing

1°×360

T shaped slot (number of slot×width of slot× interval )

5×22×160mm

Maximum load capacity of Worktable

1000kg

X axis travel

1300mm

Y axis travel

900mm

Z axis travel

900mm

Distance from center of spindle to worktable

100~1000mm

Distance from spindle nose to Center of worktable

180~1080mm

Spindle taper

BT50

Maximum spindle speed

8000r/min

Rapid traveling ( X 、 Y and Z )

24000mm/min

Maximum speed of table

10r/min

Tool room capacity

40

Tool selection mode

random

Maximum tool dimensions ( diameter, length )

¢125×320
Without adjacent tool) ¢250×350

Maximum tool weight

25kg

Tool change time ( tool to tool )

5.5s

G.W

18000kg

Positioning precision

0.012mm(Full range)

Repeatability repositioning precision

0.008mm(Full range)

Standard configuration

• Spindle speed: 8000r/min
• Spindle and servo motor load show
• Spindle and servo over loading protection
• Rigid tapping
• Full closed cover
• Electronic handwheel
• Lighting equipment
• Double helix chip cleaner
• Auto lubration system
• Electric box constant temperature devices
• Spindle tool coolant system
• RS232 interface
• Manual air gun
• Spindle taper cleaner
• Tool box

Optional configuration

• 3- axis Grating detection equipment
• Workpiece measurement system
• Cutter measurement system
• Spindle internal- cooling
• CNC rotary working- table
• Chaining chip cleaner
• Length DSET and edge finder oftool
• Oil and water splitter filter
• Spindle water- coolant equipment
• Network function
