FEATURES
◆ Precision ground hardened bedways
◆ The spindle is supported wish precision roller bearings
◆ Headstock gears are made of high quality steel, ground and hardened
◆ Removable gap is provided for larger diameter work
◆ Easy operation speed change levers
◆ Spindle speed range 70~2000r/min
◆ Two different length beds are available
◆ Easy operating gear box has various feeds and thread cutting function
◆ D1-4 camlock spindle nose



MODELS

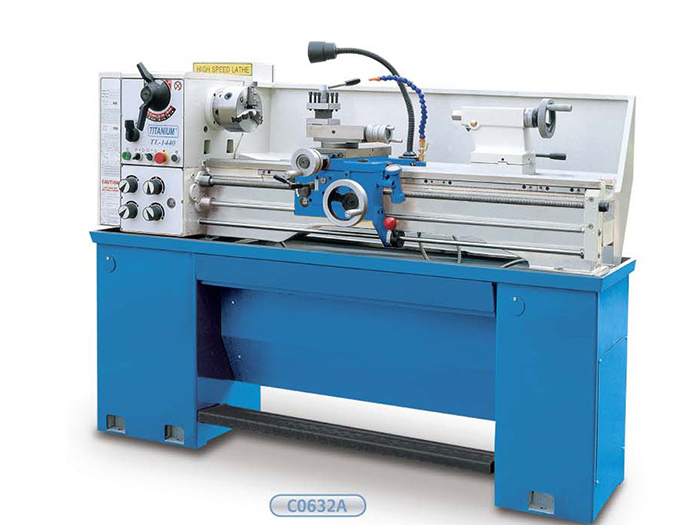

C0632A×750

C0632A×1000

C0636A×750

C0636A×1000



Swing over bed

330mm(13")

360mm(14")

358mm(14")

Swing over cross slide

198mm(7-25/32")

224mm(8-13/16")

223mm(8-25/32")

Swing in gap diameter

476mm(18-3/4")

502mm(19-3/4")

502mm(19-3/4")

Swing in length

210mm(8-1/4")

210mm(8-1/4")

210mm(8-1/4")

Center height

166mm(6-1/2")

179mm(7")

179mm(7")

Admits between

750mm(30")

1000mm(40")

750mm(30")

1000mm(40")



Bed width

187mm(7-3/8")

187mm(7-3/8")

187mm(7-3/8")

Bed length

1405mm(55-5/16")

1655mm(65-1/8")

1405mm(55-5/16")

1655mm(65-1/8")



Bed height

290mm(11- 13/32")

290mm(11- 13/32")

290mm(11- 13/32")

Spindle bore

38mm(1-1/2")

38mm(1-1/2")

38mm(1-1/2")

Spindle nose

D1-4"

D1-4"

D1-4"

Taper in nose

MT NO.5

MT NO.5

MT NO.5

Taper in sleeve

MT NO.3

MT NO.3

MT NO.3

Speeds number

8

8

8

Range of spindle speed

70-2000 r/min

70-2000 r/min

20~450 or 135~3000r.p.m

Cross slide width

130mm(5-3/32″)

130mm(5-3/32″)

130mm(5-3/32″)

Cross slide travel

170mm(6-11/16")

170mm(6-11/16")

160mm(6-5/16")

Compound rest width

80mm(3-1/8″)

80mm(3-1/8″)

80mm(3-1/8″)

Compound rest travel

95mm(3-9/16")

95mm(3-9/16")

95mm(3-9/16")

Lead screw diameter

22mm(7/8″)

22mm(7/8″)

22mm(7/8″)

Lead screw thread

8T.P.I. or 3mm

8T.P.I. or 3mm

8T.P.I. or 3mm

Feed rod diameter

19mm(3/4")

19mm(3/4")

19mm(3/4")

Cutting tool max section

16mm×16mm(5/8"×5/8")

16mm×16mm(5/8"×5/8")

16mm×16mm(5/8"×5/8")

Threads imperial pitches

34 Nos.4-56 T.P.I

34 Nos.4-56 T.P.I

34 Nos.4-56 T.P.I

Threads metric pitches

26 Nos.0.4-7 M.P

26 Nos.0.4-7 M.P

26 Nos.0.4-7 M.P

Longitudinal feeds imperial

32 Nos.0.002-0.548"/Rev

32 Nos.0.002-0.548"/Rev

32 Nos.0.002-0.548"/Rev

Longitudinal feeds metric

 32 Nos.0.052-0.392mm/Rev

32 Nos.0.052-0.392mm/Rev

32 Nos.0.052-0.392mm/Rev

Cross feeds imperial

32 Nos.0.007-0.0187"/Rev)

32 Nos.0.007-0.0187"/Rev

32 Nos.0.007-0.0187"/Rev

Cross feeds metric

32 Nos.0.014-0.380mm/Rev

32 Nos.0.014-0.380mm/Rev

32 Nos.0.014-0.380mm/Rev

Quill diameter

32mm(1-1/4")

32mm(1-1/4")

32mm(1-1/4")

Quill travel

100mm(3-15/16")

100mm(3-15/16")

100mm(3-15/16")

Quill taper

MT NO.3

MT NO.3

MT NO.3

For main motor

2HP, 3PH or 2PH, 1PH

2HP, 3PH or 2PH, 1PH

2HP, 3PH or 2PH, 1PH



Standard

·Reduction sleeves 5/3#
·Center MT3#(Dead Center, Alloy
· jaw chuck
· Chip tray
· Splash guard
· Tool box & tolls 1 set



Special Accessories:

·4 jaw chuck (200mm)
·Face plate
·Driving plate
·Quick change tool post
·Steady rest
·Follow rest
·Brake
·Coolant system
·Taper turning
·Live center
·Drill chuck
·Chuck cover
·Tool post cover
·Leadscrew cover
·Work light
·Stopper
