Feature :
◆Machine tool bed and main casting are high intension and high quality cast iron. Wide bed, A –Line high intension and high rigidity column
◆Feed axis links directly with precision rolling -ball screw drive by servo motor and high precision no spaces coupling, has no back C lesrsnC6 error
◆Spindle units are drived by spindle motor and timing belt, noise is low, libration is small, heating power is a little
◆Machine tool way and rolling-ball screw drive are used of automatic time and ration lubrication system
◆Machine tool may select fourth axis NC rotary working -table or NC dividing head
◆Machine tool may select and use domestic or import CNC system
Specification
Name |

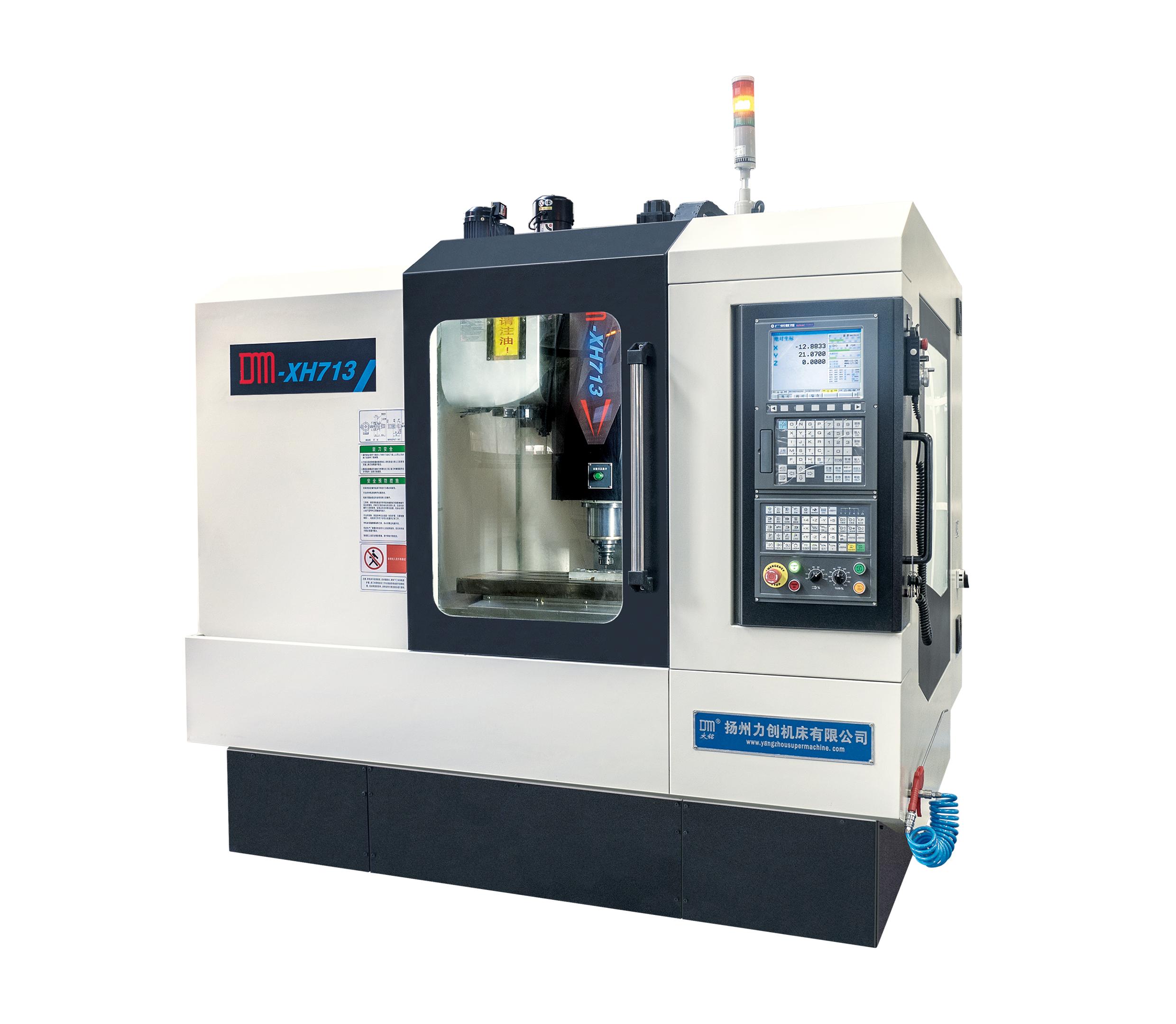

XH713G |
Worktable size (L x W) |
920×330mm |
Max. loading capacity |
300kg |
T-slots |
3×14×100mm |
X-travel |
650mm |
Y-travel |
400mm |
Z-travel |
500mm |
Distance from spindle nose to table |
100~600mm |
Distance from spindle center to column |
445mm |
Spindle inner taper |
ISO40 |
Tool |
BT40 |
Spindle speed range |
100~8000/10000r/min |
Cutting speed (X 、 Y、Ｚ ) |
1-15000mm/min |
Rapid speed (X 、 Y、Ｚ ) |
24000mm/min |
Power of main motor |
7.5kW/11kW |
Spindle torque |
47nm/70nm |
Positioning accuracy |
±0.006mm |
Repositioning accuracy |
±0.004mm |
Power supply |
15kVA |
Overall size(L×W×H) |
211×204×205cm |
Packing size(L×W×H) |
222×213×222cm |
Net weight/Gross weight |
3000kg/3500kg |
standard accessories |
． wrenches
．Retention knob
． Collets
|
|
Optional |
·X , Y axis Hiwin linear guide Way ( rapid travel speed 24m )
·Spindle speed 10000r / min
·CAT40 shrank
·HNC218M,GSK980M,KND1000M ( etc. control system )
·Full cover
·No. 4 axis |
|
|
